　　一、SZF型強力自吸抽桶泵簡介SZF series strong self-priming barrel pump



　　SZF強力自吸抽桶泵是安徽江南泵閥有限公司經過市場調研,并結合用戶需求自主設計、研發的一種高性能,耐腐蝕泵。



　　該型泵將射流~離心自吸泵完美結合而精心設計制造的一種新型強力自吸泵，它集耐腐、自吸、輸送三大功能于一體,，其流量范圍0.5-8m3/h.揚程45-12m，具有性能范圍廣，氣液分離速度快,自吸時間短,吸程高(最高可達7米),采用機械密封,結構緊湊,可靠性強等其它自吸泵無可比擬的優點,能頻繁使用自吸功能。



　　此泵特別適合容積小、不斷連續更換的桶裝容器(即通常所說的抽桶)的工況條件下工作,解決了這類行業介質輸送的一大難題。并獲得國家專利授權。



　　適用溫度:-20℃~100℃



　　SZF strong self-priming barrel pump，is our company through market research,combinedwith user requirements independent design、research and development of a highperformance and corosion-resistant pumps.



　　This type pump will fluid jet and centrifugal self-priming pump combination to elaboratedesign and manufacfure of a new ftype of strong self-priming pump,its decayresistance.self-priming and conveying three functions in one.The flow range 0.5-8m3/h.head 45-12m,with a wide range of performance,quick gas-liquid separation speed,self-priming time is short.high suction(up fo7 melers),mechanical seal,compactstructfure.reliability and other self-priming pump incomparable advantages.self-primingfunction can be used frequently.



　　This pump is particularly suitable for small-volume,constantly continuous replacementbottled container[commonly referred to as pumping bcrrelunder the conditions of work,.Solve the transportation problem of this kind of medium and obtained national patentauthorization.



　　Applicable temperature:-20℃~100℃。



　　二、SZF型強力自吸抽桶泵型號意義Model sense



　　SZF40-32-160



　　SZF-氟塑料強力自吸泵，F(xiàn)uorine plastic strong self-priming pump



　　40-泵進口直徑是4Omm，Pump inlet diameter is 40 mm



　　32--泵出口直徑是32mm，Pump outlef diameter is 32 mm



　　160-葉輪名義直徑160mm，lmpeller noninal diameier is 160mm

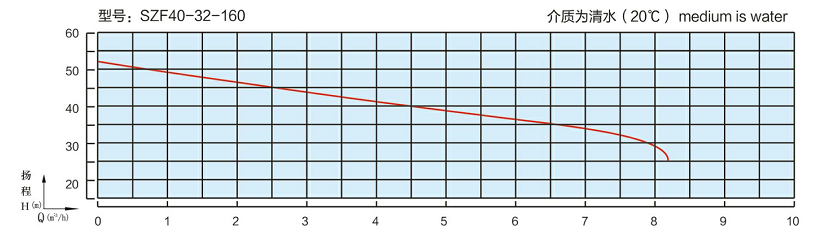

　　三、SZF型強力自吸抽桶泵性能曲線圖(n=2900r/min)Performance Curve Diagram



　　型號:SZF40-32-160介質為清水(20℃)medium is water
