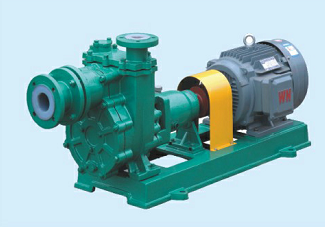

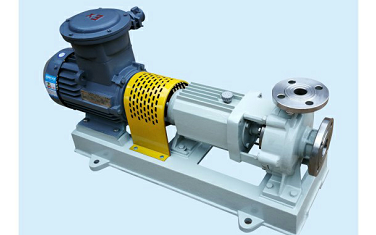

　　一、ZCQ型自吸式氟塑料磁力泵簡介ZCQ series self-priming fluorine plastic magnetic pump



　　ZCQ系列自吸式磁力驅動泵，是自吸泵與磁力泵的完美組合。采用磁力耦合傳動,不存在動密封點.因此防止一般軸傳動式離心泵軸封外跑、冒、滴、漏的現象。又具有良好的自吸功能。其過流部件采用耐腐性氟材料。因此廣泛用于醫藥、食品、制堿、印染、涂裝等行業及易燃易爆、易揮發.有毒、有機溶劑和貴重液體的輸送。



　　適用溫度:-20℃-100℃



　　ZCQ series self-priming fluorine plastic magnetic pump is the perfect combination ofscll-priming pump and magnetic pump.using magnetic coupling drive,without dynamic sealpoint,solvng general haft crive centrifugal pump seal outside run.,drip problem.Also hasgood self-priming function.lts flow components are using corrosion-resistant fluorine materias.if is widelly used in medicine,food,alkdli,prinling and dyeing.cogling and otlher industies andexplosive,volatile,toxic trarsport,organic solvents and precous liquid.



　　Applcable femperature:-20C~100-c



　　二、ZCQ型自吸式氟塑料磁力泵型號意義Model sense



　　ZCQ50-32-160F



　　ZCQ-自吸磁力驅動泵Self-prirning magnelic arive pump



　　50-泵進口直徑是50mm.llnlet diameter is 50mm



　　32-泵出口直徑是32mm Outlet diameter is 32 mm



　　160-葉輪名義直徑160mm lmpeller nominal diameter i 160 mm



　　F-泵過流部件用氟塑料制造,Fow parts cre fluorine plastic

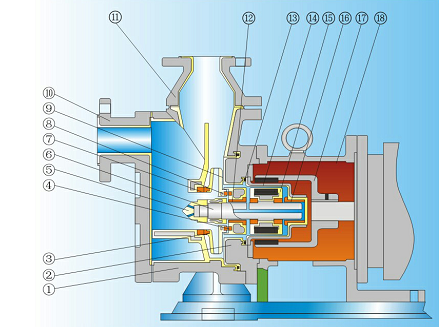

　　三、結構示意圖Structure and material



　　1泵體pump body2泵蓋pump cover



　　3葉輪前口環Impeller front ring 4止退環Thrust ring



　　5葉輪螺母Impeller nut 6主軸Spindle



　　7靜環Static ring



　　8葉輪后口環Impeller back ring 9葉輪Impeller



　　10前蓋Front cover11出口法蘭Outlet flange12前軸承Front bearing



　　13隔離套密封圈Isolation cover sealing ring14隔離套總成Isolation cover assembly



　　15轉子總成Rotor assembly



　　16后軸承Bearing block17外磁Outside magnetic18支架Stent



　　四、性能曲線圖(n=2900r/min)Performance Curve Diagram

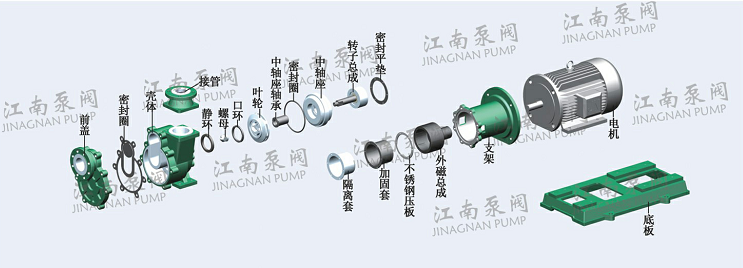

　　五、零部件示意圖Structure and material

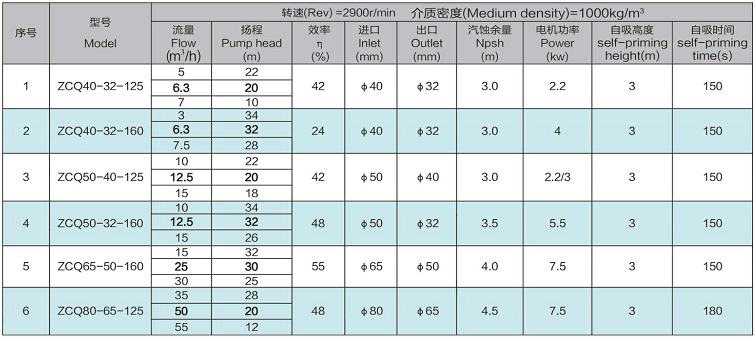

　　六、泵的型號與性能參數Model and technical data



　　*表格中流量揚程加粗字體為甚本型bold font as the standard model
