　　一、lHF-NS型高溫氟塑料離心泵簡介



　　HF-NS系列高溫氟塑料泵為單級單吸懸臂式離心泵，泵體采用金屬外殼內襯可熔性聚四氟乙烯(PFA).氟陶合金等耐膜耐磨非金屬材料,葉輪、泵蓋采用金屬嵌件外包可熔性聚四氟乙烯(PFA).氟陶合金壓制成型。該類產品參照ISO2858國際標準設計,機械密封采用內裝式水冷雙端面機械密封（專利號:201420656053.4).廣泛應用于含固量15%以下強腐蝕介質、易結晶的飽和溶液、強堿等物料輸送,適合在150℃的工作溫度下連續運行。適應行業:制酸制堿、有色金屬冶煉中的飽和電解液、環保行業的脫硫除塵、鋼鐵行業酸洗酸再生等。



　　lHF-NS series high femperature fluorine plastic pump is single-stage、single suctioncantilevered centrifugal pump.pump body use meta shell ined with PFA and solublefluorine aloy corrosion resisfant ceramic non-metalic materials.lmpeller and pump coveruse metal irnsert soluble PFA cutsourding and fluorine aloy molding.this product is designedreference to lS02858 international standard,use built-in water cooled double endmechanical seal(Patent No:201420656053.4)].Widely used in fransport of solid contentbelow 15%strong corosive media.saturated solution of easy crystallization and silrongakali;suitable for contihnuous operation below 15occ working temperature..



　　Application industry:Manufaclure of adid and alkali、saturated electrolyte in non-ferrousmetal smelting、desulfurizing and dust removing in environmental protection industry.pickling ard acid regeneration in the steel incusllry.



　　二、lHF-NS型高溫氟塑料離心泵型號意義Model sense



　　型號：



　　lHF-NS 50-32-160



　　意義：



　　IH-國際標準化工泵系列代號Chemical pump international code;



　　F-泵過流部件用氯塑料制造Flow parts are fluorine plastic;



　　NS-內裝式機械密封(專利:NS雙端面、ND單端面)-Built-in mechanical seal(patent:NS doubleend face.ND single end face);



　　50-泵進口直徑是50mm,inlet diameter is 50 mm;



　　32-泵出口直徑是32mm,Outlet diameter is 32 mm;



　　160-葉輪名義直徑160 mm,lmpeller nominal diameter is 1 60 mm;

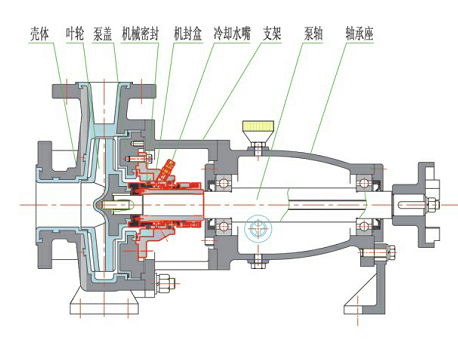

　　三、lHF-NS型高溫氟塑料離心泵結構示意圖Structure and material

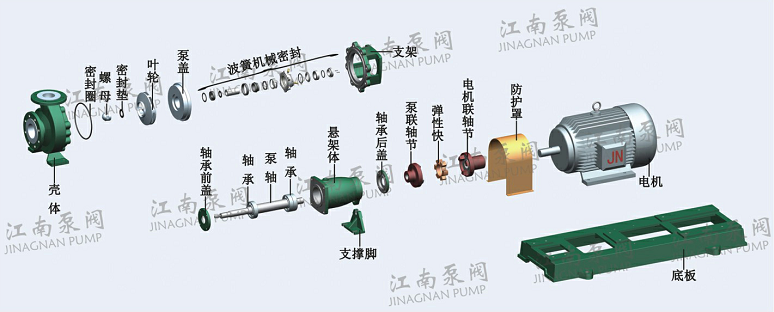

　　四、lHF-NS型高溫氟塑料離心泵零部件示意圖Structure and material

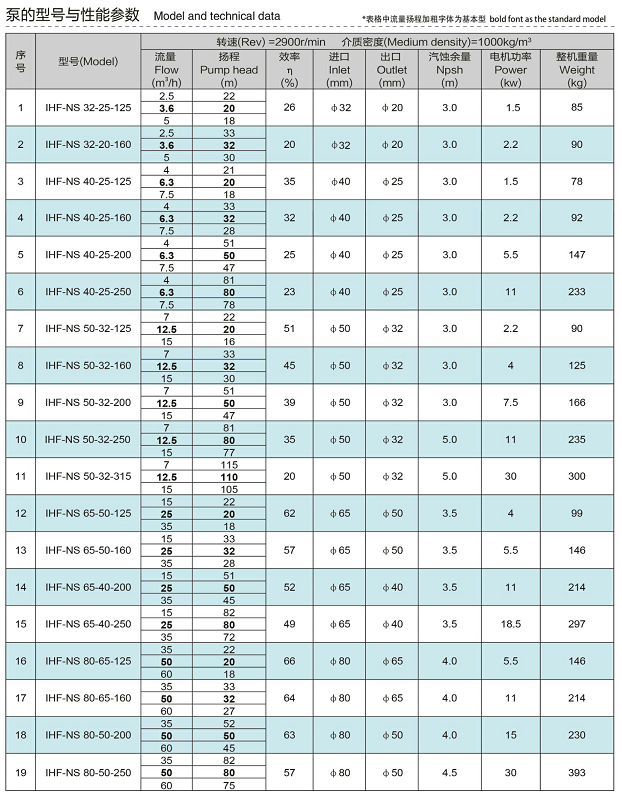

　　五、lHF-NS型高溫氟塑料離心泵的型號與性能參數 Model and technical data



　　*表格中鏡量揚程加粗字體為基本型bold font as the standard model
