　　一、JUY型耐磨耐腐液下泵簡介JUY series corrosion resistance and abrasion resistance submerged centrifugal pump



　　JUY系列液下離心泵，與輸送介質接觸的過流部件采用超高分子量聚乙烯(UHMWPE)及增強聚丙烯整體模壓而成的,液下深度1~2米,是性能穩定﹑技術成熟、受用戶歡迎、定型的防腐型泵類產品,具有優異的耐腐耐磨性能,其耐溫性~防腐性﹑機械穩定性、耐磨性以及運行費用的經濟性都得到了用戶的認可。適宜于-20~80℃范圍內的酸堿性料漿或清液的輸送。



　　JUY series submerged centrifugal pump,the flow component which and direct contact with thetransmission medium is use of ultra high molecular weight polyethylene(UHMWPE)and reinforcedpolypropylene overall molded,the depth of 1~2 meters under liquid,is a mature technology,stableperformance,welcomed by users,anti-corrosion products stereotypes,has excellent corrosionresistant performance,temperature resistance,corrosion resistance,mechanical stability,abrasionresistance and operation cost of economy are all have been recognized by the user.Suitable fortransport within the range of-20~80℃acid and alkaline pulp or the liquid without any impurities.




　　二、結構示意圖Structure and material





　　三、型號意義Model sense



　　50JUY-30-25



　　50-泵排出口徑50mm Pump outlet diameter is 50mm;



　　J-江南泵閥企業代號Our company name Abbreviation;



　　U-分子材質Polymer materials;



　　Y-液下泵代號Submerged pump code;



　　30-泵的流量為30m3/hPump flow is 30m3/h;



　　25-泵的揚程為25m The pump head is 25m;

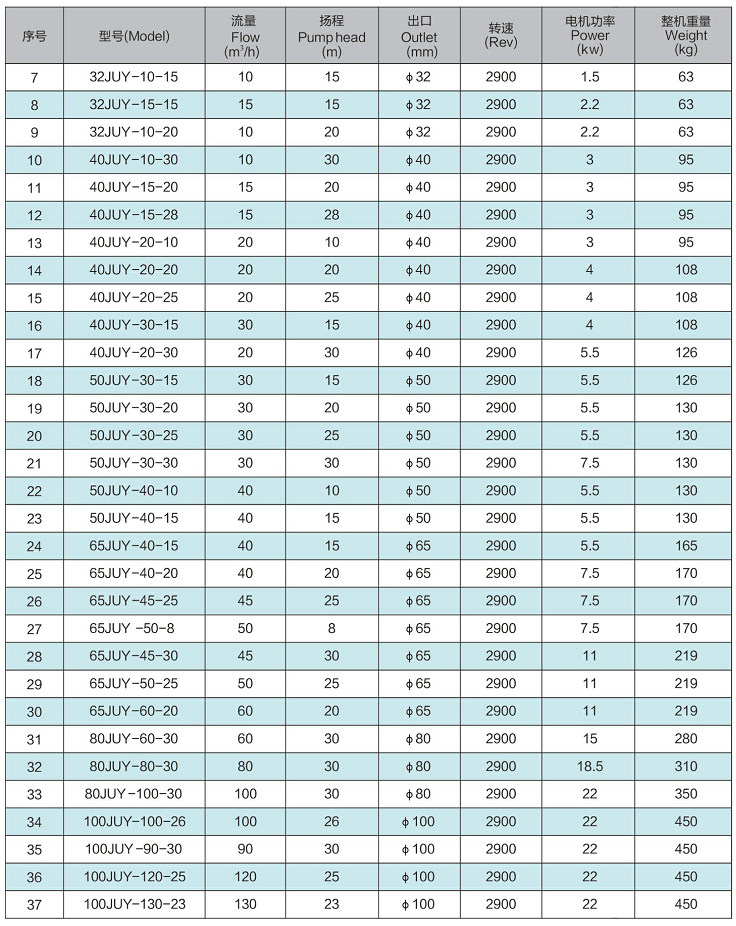

　　三、泵的型號與性能參數Model and technical data



　　*表格中流量揚程加粗字體為基本型bold font as the standard model
