　　一、SZCF型強力自吸磁力抽桶泵簡介SZCF series strong self-priming magnetic barrel pump



　　SZCF高性能耐強腐蝕自吸磁力泵是安徽江南泵閥有限公司經過市場調研，并結合用戶需求自主設計、研發的一種高性能,耐腐蝕泵。



　　該型泵分磁力驅動,機械密封兩種結構,其流量范圍2-8m3/h,揚程45-12m,具有性能范圍廣,氣液分離速度快,自吸時間短,吸程高(可高達7米),結構緊湊,可靠性強等其它自吸泵無可比擬的優點,能頻繁使用自吸功能。



　　此泵特別適合輸送容積小,不斷連續更換桶裝介質(即通常所說的抽桶)的工況條件下，解決了這類行業介質輸送的一大難題。



　　適用溫度:-20℃~100℃



　　SZCF high-performance strong corosion resistance self-priming magnetic pump is our companythrough market research,combined with user requirements independent design、research anddevelopment,Iit is a high performance and corosion-resistant pumps.



　　The pump has two structures.one magnetic drive,the other is mechanical seal.Flow range2-8m3/h,head 45-12m,has a wide range of performance,quick gas-liquid separation speed.self-priming time is short,high suction(up to 7 m),compact structure,reliability and otherseli-priming pump incomparable advantages,sel-priming function can be used frequently.This pump is particularly suitable for small-volume,continuous replacement of casks(known aspumping barrel)conditions of work,Solve the transportation problem of this kind of medium.



　　Applicable temperature:-20℃~100℃



　　二、SZCF型強力自吸磁力抽桶泵型號意義Model sense



　　SZCF40-32-160 F



　　SZCF-高性能耐強腐蝕自吸磁力泵，High performance strong corrosionresistant self-priming magnetic pump；



　　40-泵進口直徑是40mm，Pump inlet diameter is 40 mm；



　　32-泵出口直徑是32mm，Pump outlet diameter is 32 mm



　　160-葉輪名義直徑16Omm，lmpeller nominal diameter is 160mm



　　F-泵過流部件用氟塑料制造Flow parts are fluorine plastic

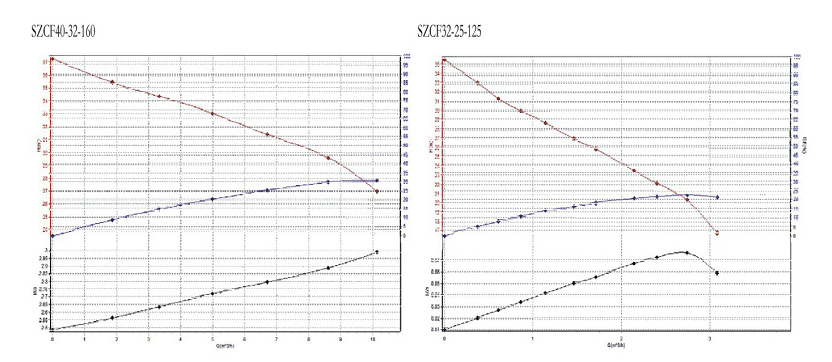

　　三、SZCF型強力自吸磁力抽桶泵性能曲線圖(n=2900r/min)curve of capacity



　　四、SZCF型強力自吸磁力抽桶泵泵的型號與性能參數Model and technical data



　　*表格中流量揚程加相字體為基本型bold font as the standard model
