　　一、IMD型氟塑料磁力泵簡介IMD series Fluorine plastic Magnetic pumps



　　IMD系列氟塑料磁力驅動泵,耐強腐蝕,無泄漏,泵殼有底腳,泵和電機固定在共用的的底座上,穩定性好,運行噪音和振動更低。結構設計為后拉式,檢修、更換零部件時,可將核心部件直接從后面抽出,不用拆卸管路和底座，節省了工時維護和成本,極大地方便了客戶。



　　適用溫度:-20℃~100℃



　　lMD series fluorine plastic magnetic drive pump.striong corrosion resistance,no leakage,pumpshell with foot,the pump and motor are fixed on the common base,good stability,runningnoise and vibration is lower.Structural design is the back pull type,when need overhaul orneed to remove the pipe and the base,saving man-hours and maintenance cost,bring greatreplacement parts,can be extracted drectly from the back of the core components,don'tconvenience to cierts pplcable temperature:-20℃~100℃

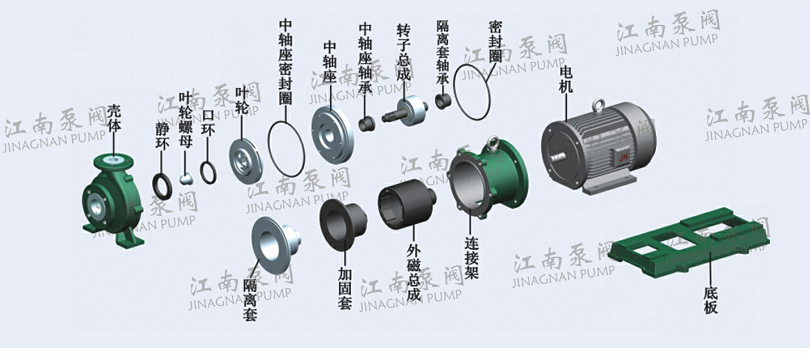

　　二、零部件示意圖Structure and material

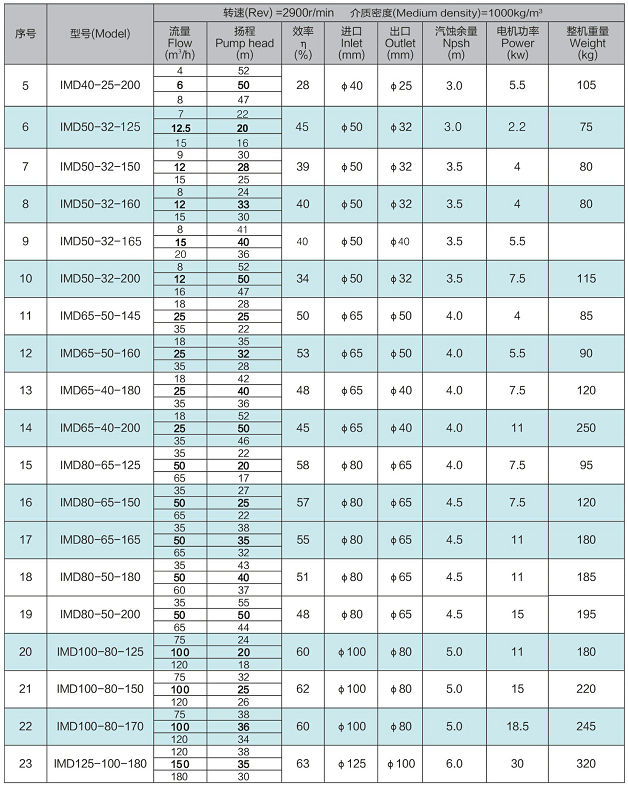

　　三、泵的型號與性能參數Model and technical data



　　*表格中流量揚程加粗字體為基本型bold font as the standard model
