　　一、GBF襯氟管道泵簡介GBF Series Fluorine plastic lining pipeline pump



　　GBF型襯氟管道泵是通過氟塑料熱熔融模壓工藝制造，具有特強的耐腐蝕性能的新型管道離心泵。該泵葉輪通過支架與電機直聯，結構緊湊,選用波紋管外裝式機械密封,軸封穩定可靠,直觀易調。水力性能優越,吸入口過度均勻,過流部件采用全氟材料(FEP、PFA)制造,耐腐性能卓越。具有耐腐、耐溫、不老化、運行平穩、噪音低.效率高、維護方便、使用壽命長等優點廣泛用于制酸制堿、石油、化工、電解、電鍍酸洗鋁箔、稀土、醫藥、染料、農藥、煙氣脫硫,除塵、食品制藥和合成纖維等行業。



　　適用溫度60℃~+150℃



　　GBF series fluorine plastic lining pipeline pump is made by fluorine plastic hotmelt molding process,with particularly strong corrosion resistance of the newpipeline centrifugal pump.This pump impeller and motor straight via stent,choose bellows oufer container type mechanical seal,shaft seal is stable andreliable,intuitive easy to adjust.hydraulic performance is superior,the suctionuniform.over-current components using fluorine plastic materials(PEP,PFA)manufacturing,decay resistance performance excellence.Corrosion resistance,heat resistance,not aging,smooth operation,lownoise,high efficiency,easy maintenance,long life and other advantages.,widely used in acid and alkali,oil,chemical industry,electrolysis,electroplating.pickling,aluminum foil,rare earth,medicine,dyes,pesticides,flue gasdesulfurizatio and dust removal,food,pharmaceutical and synthetic fiberindustries.



　　Applicable temperature:60℃~～+150℃

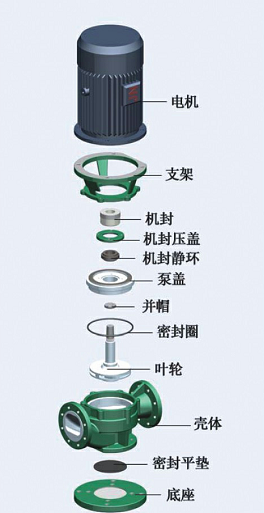

　　二、GBF襯氟管道泵零部件示意圖Structure and material



　　三、GBF襯氟管道泵型號意義Model sense



　　50GBF-30



　　50-進口~出口公稱直徑，50:Nominal diamefer of inlet and outle



　　GBF-襯氟管道泵，GBF:Fourine plastic lining pipeline pump



　　30-泵的揚程，30Pomp head



　　四、GBF襯氟管道泵設計特點Design features



　　1.過流部件采用氟塑料熱熔融模壓工藝?yán)喂探Y(jié)合成一個整體,機械強度高;



　　2.具有卓越耐腐性能,輸送各類強酸、堿﹑氧化劑等腐蝕性介質及有機溶劑毫不受損;



　　3.泵為立式結構,進出口口徑相同,且位于統一中心線上,安裝方便,使用場地地面積小,電機改用防雨風罩可置于戶外使用;



　　4.葉輪與電機直聯傳動,軸向尺寸短,結構緊湊,運行平穩,傳動效率高,噪音、振動低;



　　5.軸封選用外裝四氟波紋管機械密封,密封可靠,直觀可調,并可根據介質特性提供多種材質摩擦副選擇,應用范圍廣;



　　6.使用維護便捷,只要卸下泵體與連接架緊固螺母即可拆解其余部件,無需拆動管路。



　　1.The pump flow components application fuorine plastic hot melt moulding proces combined into a whole,high mechanical strength;



　　2.Has excellent comosion resistance performance,transmission of alkoinds of corrosive medium,such as acid,alkali oxidant and organic solventwithout damage;



　　3.3.The pump is verical structure inlet and outlet diameter are the same,and islocated in the center of a urified online,eay instalationuse of asmall area,the motor add a rainproof cover can be used outdoors;



　　4.The impeler and motor drect dive,short axial dimensions,compact structure,smooth operation high transmission efficiency,low noise andvibration;



　　5.Shaft seal instlled PTFE corugated pipe mechanical sea,.sedled and reliable,inftitive,and according to the characteristics of the media toprovide a variety of materials friction pair selection,and has a wide application range;



　　6.The use of the maintenance is convenient,only need to remove the pump body and the connecting frame fastening nut can bedisassembled the rest.no need to remove the dynamic pipeline.

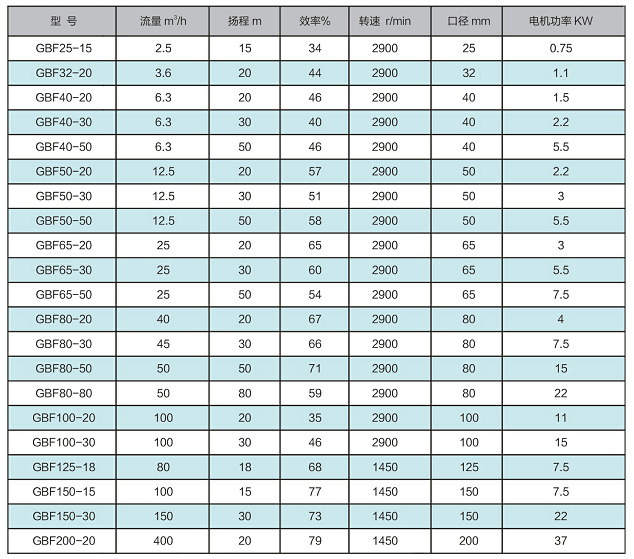

　　五、GBF襯氟管道泵的型號與性能參數Model and technical data
